KFD Eco 70 - Corner R/L - 15.9 kW
KFD Eco 70 - Corner R/L - 15.9 kW
ECO fireplace inserts offer durability and safety with a double-jacket steel construction and high-temperature-resistant chamotte plates, ensuring heat retention and easy maintenance. They feature efficient double combustion for eco-friendly heating, a chimney damper for precise draught control, and an ash pan for hassle-free cleaning. The precise door lock, smooth air regulation, and transparent ceramic glass provide safety, ease of use, and a clear fire view. Designed for modern homes with direct air inlets and adjustable legs, ECO inserts combine reliability, efficiency, and convenience.
|
HEATING & TECHNICAL PARAMETERS: |
|||||
|
Energy efficiency class |
A |
||||
|
Direct heat output (nominal power) |
15,9 [kW] |
||||
|
Heating power range |
10,0 - 18,0 [kW] |
||||
|
Energy efficiency index |
107,0 [EEI] |
||||
|
Energy efficiency at nominal heat output |
79,8 [%] |
||||
|
Seasonal space heating energy efficiency |
69,8 [%] |
||||
|
CO emission at 13% O2 |
0,077 [%] |
||||
|
Dust emission at 13% O2 |
22 [mg/Nm3] |
||||
|
OGC at 13% O2 |
64 [mg/Nm3] |
||||
|
NOX emission at 13% O2 |
60 [mg/Nm3] |
||||
|
Flue gas mass flow |
12,1 [g/s] |
||||
|
Average smoke temperature at smoke outlet |
282 [°C] |
||||
|
Minimum chimney draft |
12 [Pa] |
||||
|

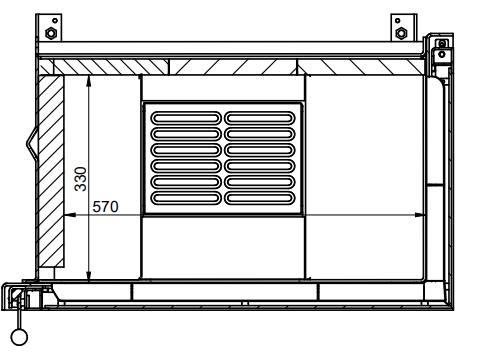

DIMENSIONS & WEIGHT: |
|||||
|
Total dimensions, height x width x depth |
1026x707x463 [mm] |
||||
|
Fascade dimensions, width x height |
707x526 [mm] |
||||
|
Side fascade dimensions, width x height |
433x526 [mm] | ||||
|
Front glass dimensions, width x height |
637x431 [mm] |
||||
|
Side glass dimensions, width x height |
372x431 [mm] | ||||
|
Maximum log lenght |
50 [cm] |
||||
|
Internal/external smoke flue diameter |
190 / 200 [mm] |
||||
|
Air inlet diameter |
100 * [mm] |
||||
|
Weight |
125 [kg] |
||||
