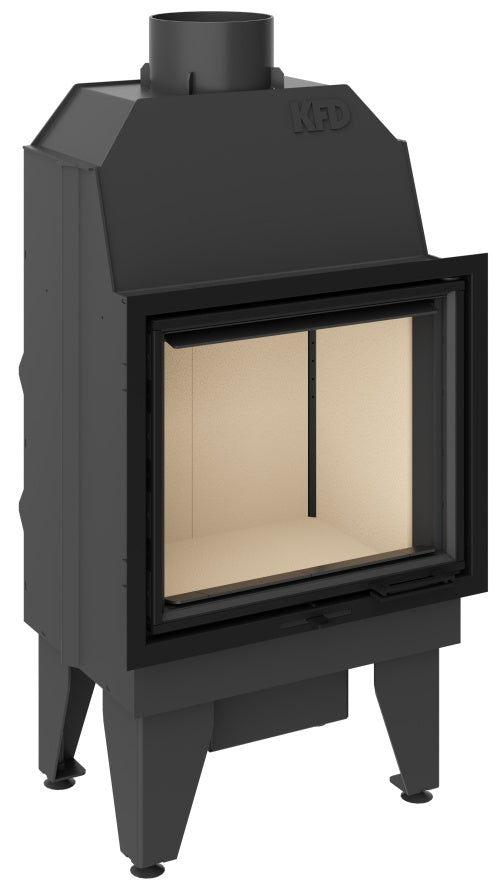

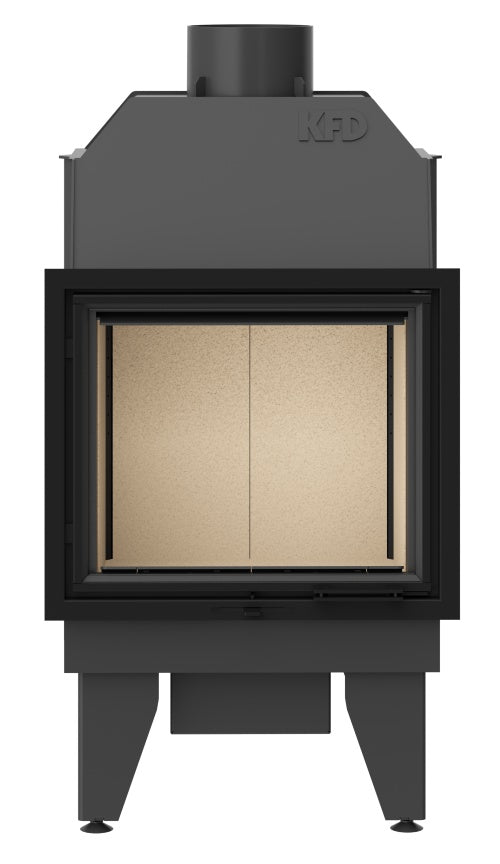

KFD Eco iLine 5161 - 12,9 kW
KFD Eco iLine 5161 - 12,9 kW
Couldn't load pickup availability
with a double-jacket steel construction and high-temperature-resistant chamotte plates, ensuring heat retention and easy maintenance. They feature efficient double combustion for eco-friendly heating, a chimney damper for precise draught control, and an ash pan for hassle-free cleaning. The precise door lock, smooth air regulation, and transparent ceramic glass provide safety, ease of use, and a clear fire view. Designed for modern homes with direct air inlets and adjustable legs, ECO inserts combine reliability, efficiency, and convenience.
HEATING & TECHNICAL PARAMETERS: |
|||||
Energy efficiency class |
A |
||||
Direct heat output (nominal power) |
12,9 [kW] |
||||
Heating power range |
6,0 - 15,0 [kW] |
||||
Energy efficiency index |
105,0 [EEI] |
||||
Energy efficiency at nominal heat output |
78,8 [%] |
||||
Seasonal space heating energy efficiency |
68,8 [%] |
||||
CO emission at 13% O2 |
0,094 [%] |
||||
Dust emission at 13% O2 |
21 [mg/Nm3] |
||||
OGC at 13% O2 |
92 [mg/Nm3] |
||||
NOX emission at 13% O2 |
48 [mg/Nm3] |
||||
Flue gas mass flow |
11,7 [g/s] |
||||
Average smoke temperature at smoke outlet |
268 [°C] |
||||
Minimum chimney draft |
12 [Pa] |
DIMENSIONS & WEIGHT: |
|||||

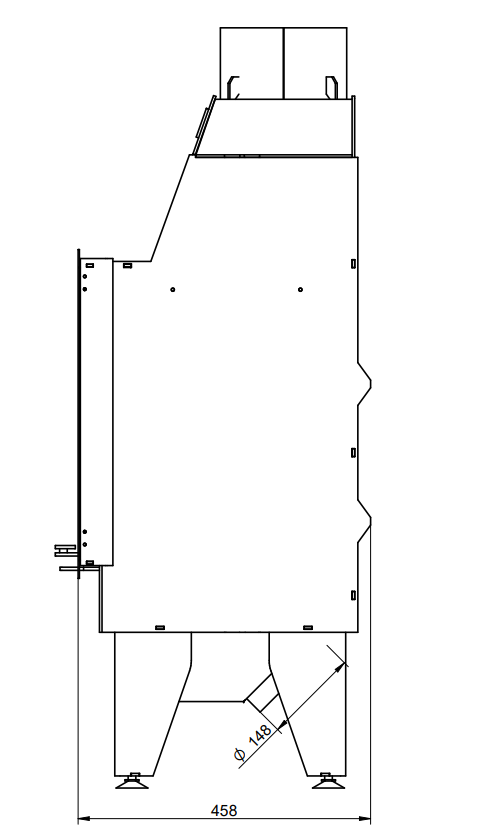

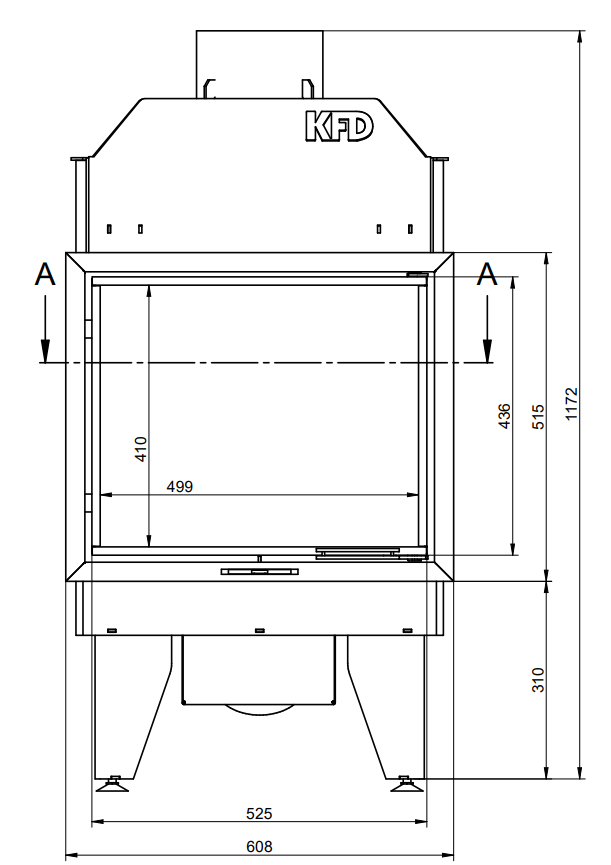

Total dimensions, height x width x depth |
1172x608x458 [mm] |
||||
Fascade dimensions, width x height |
608x512 [mm] |
||||
Side fascade dimensions, width x height |
N/A** |
||||
Front glass dimensions, width x height |
515x425 [mm] |
||||
Side glass dimensions, width x height |
N/A** |
||||
Maximum log lenght |
40 [cm] |
||||

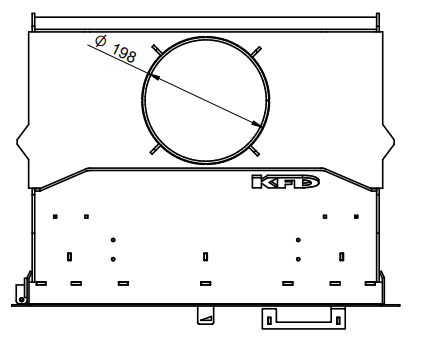

Internal/external smoke flue diameter |
190 / 200 [mm] |
||||
Air inlet diameter |
150 * [mm] |
||||
Weight |
148 [kg] |
