KFD Eco iLux 90 - 10,6 kW
KFD Eco iLux 90 - 10,6 kW
ECO fireplace inserts offer durability and safety with a double-jacket steel construction and high-temperature-resistant chamotte plates, ensuring heat retention and easy maintenance. They feature efficient double combustion for eco-friendly heating, a chimney damper for precise draught control, and an ash pan for hassle-free cleaning. The precise door lock, smooth air regulation, and transparent ceramic glass provide safety, ease of use, and a clear fire view. Designed for modern homes with direct air inlets and adjustable legs, ECO inserts combine reliability, efficiency, and convenience.
|
HEATING & TECHNICAL PARAMETERS: |
|||||
|
Energy efficiency class |
A |
||||
|
Direct heat output (nominal power) |
10,6 [kW] |
||||
|
Heating power range |
5,0 - 14,0 [kW] |
||||
|
Energy efficiency index |
106,0 [EEI] |
||||
|
Energy efficiency at nominal heat output |
79,1 [%] |
||||
|
Seasonal space heating energy efficiency |
69,0 [%] |
||||
|
CO emission at 13% O2 |
0,12 [%] |
||||
|
Dust emission at 13% O2 |
10 [mg/Nm3] |
||||
|
OGC at 13% O2 |
118 [mg/Nm3] |
||||
|
NOX emission at 13% O2 |
102 [mg/Nm3] |
||||
|
Flue gas mass flow |
9,66 [g/s] |
||||
|
Average smoke temperature at smoke outlet |
273 [°C] |
||||
|
Minimum chimney draft |
12 [Pa] |
||||
|
DIMENSIONS & WEIGHT: |
|||||
|

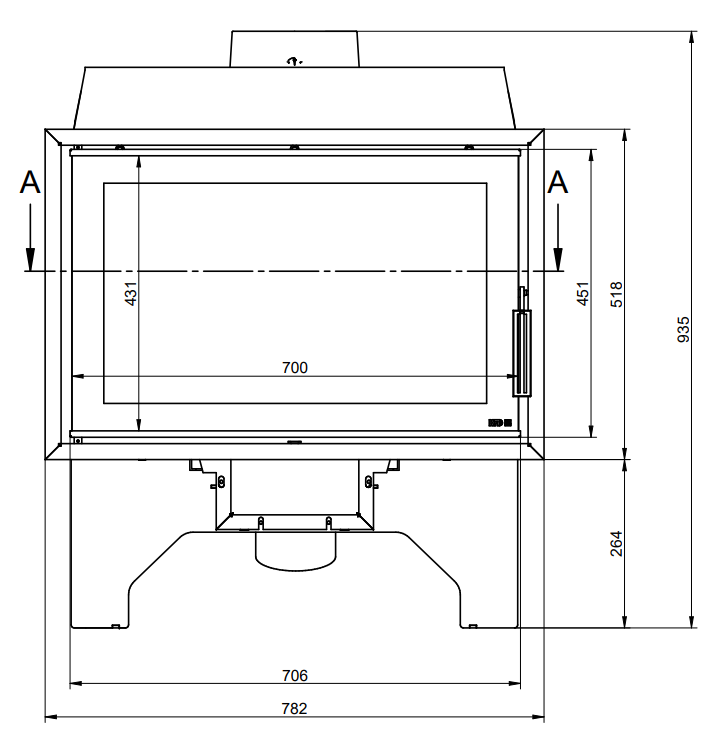

Total dimensions, height x width x depth |
935x782x481 [mm] |
||||
|
Fascade dimensions, width x height |
782x518 [mm] |
||||
|
Side fascade dimensions, width x height |
N/A** |
||||
|
Front glass dimensions, width x height |
700x445 [mm] |
||||
|
Side glass dimensions, width x height |
N/A** |
||||
|
Maximum log lenght |
50 [cm] |
||||
|

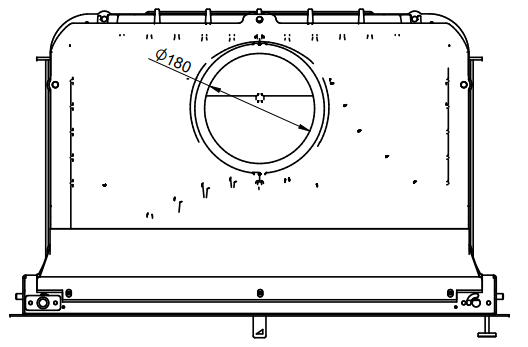

Internal/external smoke flue diameter |
180 / 200 [mm] |
||||
|

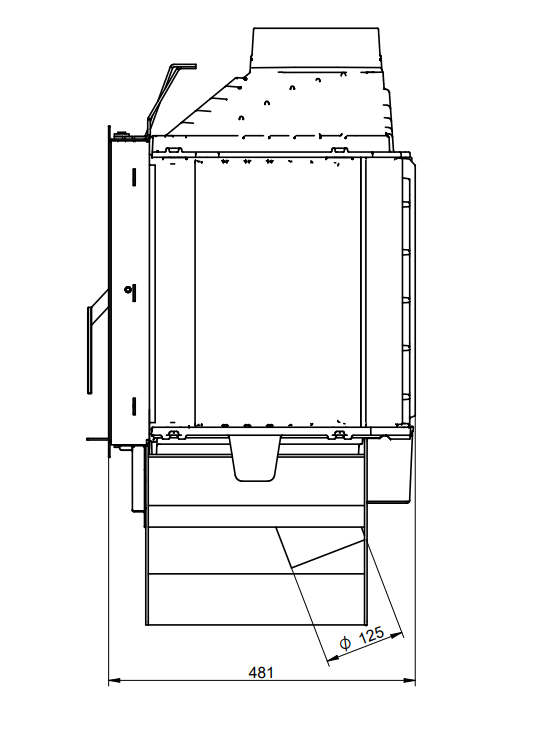

Air inlet diameter |
125 [mm] |
||||
|
Weight |
135 [kg] |
||||
