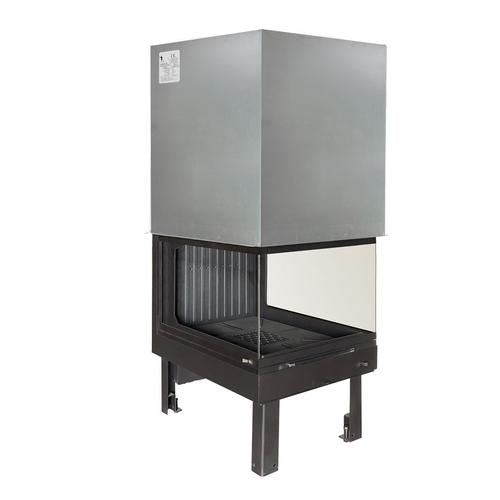

Panoramic P, 20kW

TECHNICAL SPECIFICATIONS:
– Double-walled fireplace made of 4mm steel.
– High-resistance ceramic glass (4mm) by the German company SCHOTT, resistant to temperatures up to 750°C.
– Telescopic door guides of the latest technology by the German company SCHOCK.
– Internal lining made of removable cast iron plates.
– Door locking mechanism for enhanced safety.

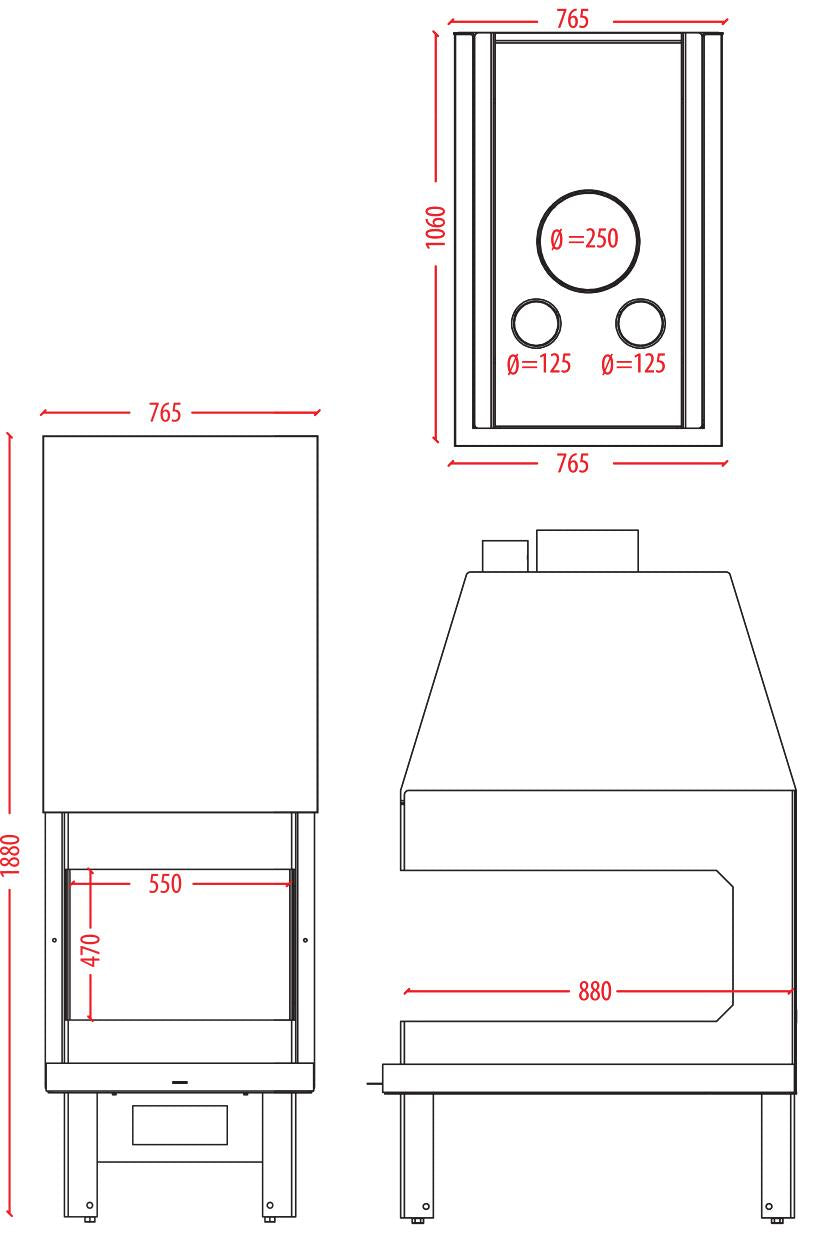

External Dimensions (cm) (Height, Width, Depth): 188 x 76.5 x 106
Internal Dimensions (cm) (Height, Width, Depth): 47 x 55 x 88
Door Opening Dimensions (cm) (Height, Width): 37 x 55 x 80.5
Weight (kg): 357
Chimney Diameter (mm): Φ250
Number of Hot Air Outlets (Φ125): 2+2 (optional)
Firebox Lining: Cast iron
Total Heat Output (kW/h): 20.0
CO Emissions (13% O2): 0.5000 (<1)
Efficiency (%): 73.0
Primary Air: YES
Secondary Air: YES
Tertiary Air: YES
Hourly Wood Consumption (kg/h): 5.70 – 5.80
